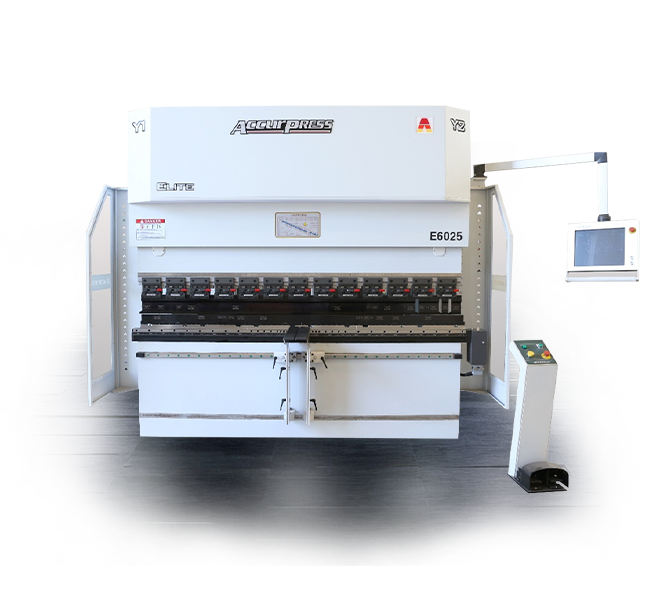

Accurpress Press Brakes
One small push for you. One big push for metal.
Accurpress offers an extensive range of Press Brakes, fully customizable to meet any bending demand.
Accurpress offers an extensive range of Press Brakes, fully customizable to meet any bending demand.
Accurpress press brakes are designed from the ground up to be the most intelligent metal pressing machines on the market. Using a combination of Electric and Hydraulic drive systems to acheive the fastest cycle speeds on the Accurpress lineup, this baby will pump out more parts than the competition.
You care about the environment, and so do we. That’s why we've brought you the greenest press brake on the market, with servo-electric hybrid hydraulics. Your pumps will only run when you're making parts.
With modern controls, fast approach speeds, state of the art back gauges and optional automation, the Accurpress press brake line ensures high product output and machine uptime.
view back features
view front features
At Accurpress we know all aspects of bending. Take a look at our selection of quality certified tools and get professional advice on choosing the right tool for your application.
Accurpress Automation has options for configuring and linking machines with various types of robotics. The flexible setups allow for full production lines or simple standalone installations, whatever your needs, Accurpress will deliver.
Our specialist will show you how our machines work and what sets us apart from the competition
The new generation Delem controls have been integrated with the Accurpress press brakes to deliver the highest grade of efficiency in programing, operation and control for press brake operation. The controls give access to the proven Delem interface and enables direct navigation between programming and production.
The DA-58T is a state of the art complete 2D graphical control solution for synchronized press brakes.
Some of the features include:
The DA-66T is an advanced control capable of multi axe functionality with 2D graphical programming with automatic bend sequence calculation and collision detection.The DA-66T upgrade is required for any Z1/Z2 axes gauge or Sheet Follower options.
The full 3D machine set-up includes multiple tool stations and offers true feedback on product feasibility and handling.
Some of the many features include:
Accurpress offers a selection of superior safeguard options, including Pilz and SICK safety systems PLUS optional mechanical side guarding and/or rear guarding to meet applicable industry safety standards and operator safe practices.
Accurpress backgauges integrates seamlessly with the Delem Control, are easily upgradeable with additional axes and productivity packages. They are fast and precise and designed with the operator in mind.
The standard Premium backgauge comes with an X-R axis. Upgrade options include Z1-Z2 axes and X-Prime fingers.
| Axis | Stroke | Positioning Speed | Positioning Accuracy | Re-positioning Accuracy | Holding Force |
| X | 609.6 mm | 420 mm/s Max 600 mm/s |
±0.025 mm | ±0.025 mm | 340 kg |
| R | 254 mm | 420 mm/s | ±0.025 mm | ±0.025 mm | |
| Z1;Z2 | 420 mm/s | ±0.15 mm | ±0.15 mm |
Notice: Z1;Z2 stroke depends on the distance between side frames
The Floor mounted premium backgauge comes standard with an X-R axis. Upgrade options include Z1-Z2 axes and X-Prime fingers. Floor mounted backgauges provide more space for bending parts inside the machine.
| Axis | Stroke | Positioning Speed | Positioning Accuracy | Re-positioning Accuracy | Holding Force |
| X | 609.6 mm | 420 mm/s | ±0.025 mm | ±0.025 mm | 340 kg |
| R | 200 mm | 420 mm/s | ±0.025 mm | ±0.025 mm | 100 kg |
| Z1;Z2 | 420 mm/s | ±0.15 mm | ±0.15 mm |
Notice: Z1;Z2 stroke depends on the distance between side frames
This is the best backguage for bending complex parts. With two independant fingers the backgauge can be configured to gauge for any application.
| Axis | Stroke | Positioning Speed | Positioning Accuracy | Re-positioning Accuracy | Holding Force |
| X1;X2 | 609.6 mm | 420 mm/s | ±0.025 mm | ±0.025 mm | 340 kg |
| R1;R2 | 200 mm | 420 mm/s | ±0.025 mm | ±0.025 mm | 100 kg |
| Z1;Z2 | 420 mm/s | ±0.15 mm | ±0.15 mm |
Notice: Z1;Z2 stroke depends on the distance between side frames
Accurpress utilizes Rexroth hydraulic components and is proud to offer both economical and ecological hydraulic systems to our customers. All systems are engineered to deliver top performance, reliability and repeatability.
Our standard Absolute model is equipped with an 3-phase AC motor and has an optional variable speed drive option that allows for more ecological operation.
Our second option, which comes standard on our Prestige line of machines up to 250 tonnes, is a Servo pump powered hydraulic system which allows for extremely low power consumption when machine is idle.
Our final option, which comes standard on our Ultimate line of machines up to 250 tonnes, is a hybrid servo pump powered hydraulic system which only uses power during the bending stroke and is our most efficient drive system.
Accurpress uses two styles of Ram guiding systems - Sliding ways come stock on our Absolute line, and Four-point Roller Ways for our Prestige and Ultimate lines.
The lifetime lubricated sliding ways are located on each end of the ram, the box is designed for maximum contact combined a with low-friction surface. This combination ensures sustained accuracy and a long service life.
The Four point roller ways is our high precision and longevity option that comes standard on the Prestige and Ultimate lines. With two sets of roller ways per side, this option reduces friction while maintaining rigidity, accuracy and allowing high-speed operation.
There are three types of Sheet Supports that an Accurpress can be configured with the Standard Stationary Sheet Supports, the Traversing Sheet Supports and the Premium Sheet Supports. Along with sheet supports, in order to aid in larger parts Accurpress offers two types of Sheet Followers: the Single Axis Sheet Follower and the Dual Axis Sheet Follower.
The stationary sheet supports come standard with Absolute models, they have 180° swivel and thus can be used flexibly or easily moved out of the way when not needed. They also include a disappearing stop for positioning parts.
These supports come standard on the Prestige model, they also have 180° swivel action and disappearing stops, but also can be moved and positioned anywhere along the table of the machine.
Sheet Followers are an excellent addition to allow operators to safely handle larger parts. For 90° bending we offer the Single Axis Sheet Follower, for acute bending and hemming of large parts we offer the Dual Axis Sheet Follower.
Accurpress pressbrakes can be configured with American, European and Wila style clamping systems and built to your preference of style and brand.
Accurpress is proud to offer our European style Quick-Clamp system. Using a two-stage clamping system, tools can be loaded from the sides or at any point along the pressing beam. They are a cost effective, efficient solution for quick tool changes – designed to save you money by reducing setup time.
Any of the Accurpress lines can be configured to have hydraulic clamping. This innovative style of system provides unparalleled setup times and truly optimizes pressbrake productivity.
Accurcrown top tier mechanical CNC bed crowning that minimizes deflections that naturally occur during the bending process. Using a system of wedges to counteract the predicted deflection, the Accurcrown system allows operators to dial in their machine as quick as possible with the fewest number of bends and wasted parts.
